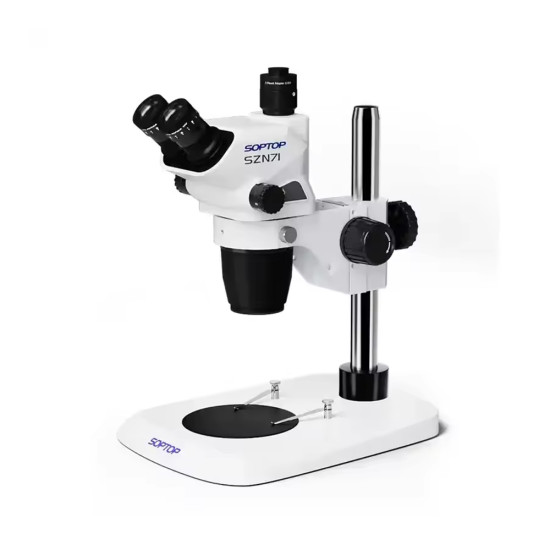

Soptop SZN71 6.7–45X Adjustable Trinocular Microscope with Aluminum Alloy Big Base is a professional-grade tool designed for precision work, such as electronics repair and scientific inspection. It features high-definition optics, substantial adjustability, and robust construction for versatile use in repair and research environments.
Features
- Trinocular HD Viewing: Three-head observation allows attachment of cameras for imaging and recording, improving documentation and analysis.
- Continuous Optical Zoom: 0.67x to 4.5x high-precision zoom, with smooth adjustment and 360° rotatable handwheel for easy focusing.
- Wide Working Distance: 110mm for convenient handling of tools and repair operations without obstruction.
- Aluminum Alloy Base: Large, flat, column-type platform (260×320mm) for stability, durability, and supporting objects of various sizes.
- Lift & Macro Adjustment: 150mm lift adjustment plus 50mm macro adjustment for versatile magnification and height control.
- Eyepiece & Objective Options: Standard PL10X/22mm eyepiece with adjustable diopter, auxiliary objectives (0.3X–2X) available for enhanced clarity and customization.
- Ergonomic Design: 45°-tilted viewing head, interpupillary adjustment (52–76mm), and optional myopia adaptation for comfortable long-term use.
- Mirror Lock Switch: Lockable magnifying lens prevents focal changes during extended observations or repairs.
- Camera Interface: Reserved mount for HD industrial camera (standard 0.5X CTV adapter) for electronic magnification and professional measurement.
Usage & Applications
- Mobile phone, computer, and electronic component repair (CPU, BGA chip, etc.)
- Biological and medical science research
- Precision part assembly, watchmaking, and circuit board inspection
Specification:
- Model: SZN71
- Optical magnification: 6.7-4.5X
- Viewing head: Trinocular observation head,45 tilt,continuous zoom objective lens 0.67-4.5X, interpupillary distance adjustment range 52mm-76mm, with fixed-rate fixed-magnification mechanism and the highest and lowest times adjustment locking function
- Eyepiece: High eye point and large field of view eyepieces PL10X/22mm, with adjustable diopter
- Working distance: 110mm
- Focus bracket: The focusing handwheel is adjustable,and the lifting range is 50mm.
- Work platform: Black and white platen
- Pedestal: Column type large flat base.Column diameter 32mm, height: 228mm, base size: 260*320mm
- C interface: 0.5X camera adapter, C-type interface, adjustable focus
- Auxiliary objective: 0.5X
- Optional eyepiece: 15X/16mm, 20X/12mm
- Optional auxiliary objective: 0.3X, 0.4X, 0.5X, 0.75X, 1.5X, 2X
Package Content*
1x Soptop SZN71 Stereo Microscope Head
1x Pair of 10X/22 EyePiece
1x Small Base
1x Bracket Stand
1x Ring Light
1x CTV Camera 0.5X lens
