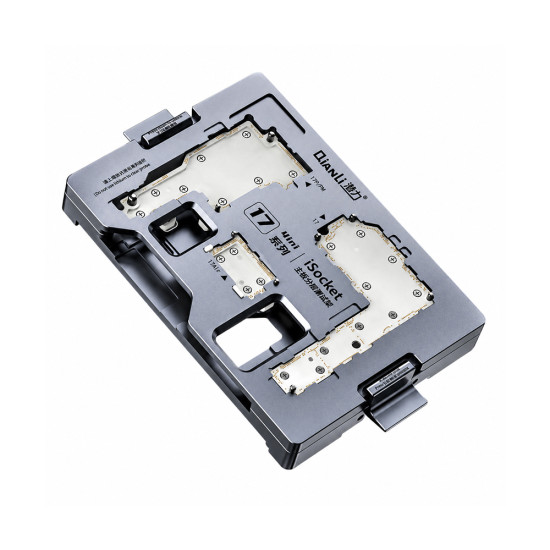

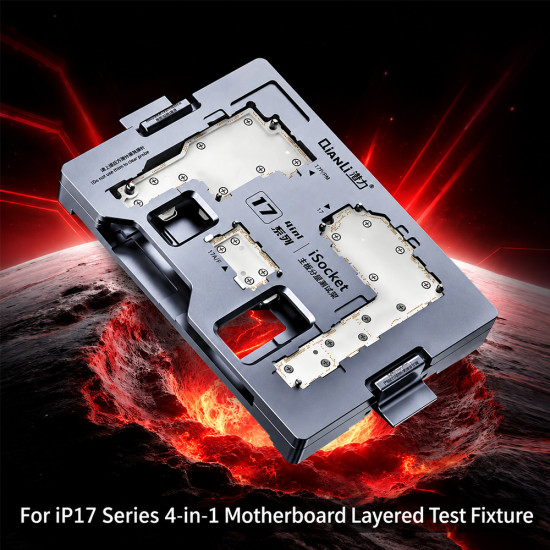

QianLi iSocket 17 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 17 / 17 Air / 17 Pro / 17Pro Max

Features:

• QianLi iSocket 17 Series motherboard layered test frame, easily solves the troublesome problem of motherboard testing, insists on using BeCu spring probes, applicable to iPhone iPhone 17 / 17 Air / 17 Pro / 17Pro Max
• Compatible with mobile phone models, based on many years of rich experience in test frame products
• CNC high-precision machining controls every detail
• The double-headed probe accurately aligns the small holes to improve the contact performance, fastens with fixed buckles, so  the motherboard will not warp, and the test data is more accurate
• With good conductivity, stable overload, small deviation in detected values, and more accuracy, the tapered probe is not easily stained by rosin and solder
• Spring buckle, quick rebound, convenient, and fast
• Anti-slip foot pads, anti-slip, wear-resistant, and more stable

Steps:

• Place the lower motherboard at the base of the test stand
• Fasten the pin board above the lower motherboard
• Place the upper motherboard and buckle it on the pinboard
• Fasten the two wings of the upper cover of the test stand and connect the power supply and screen to start testing

Package Content*

1 x Test Platform

4x Pinboard
