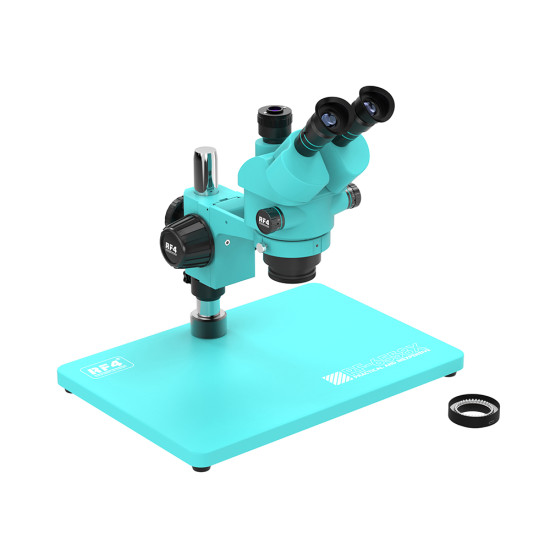

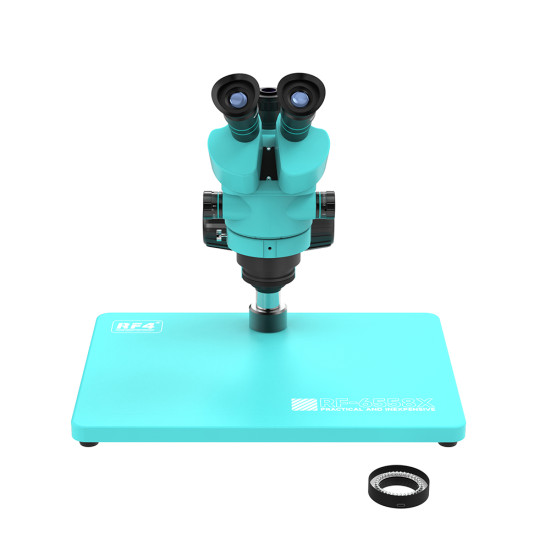

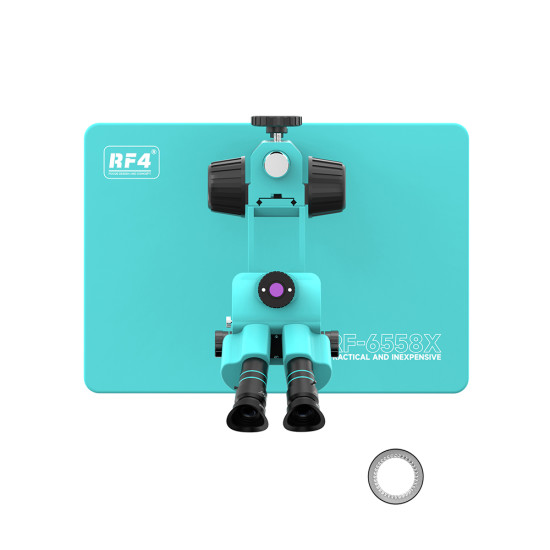

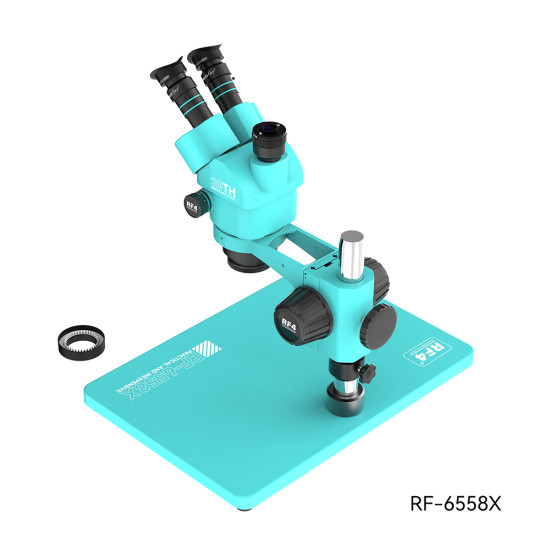

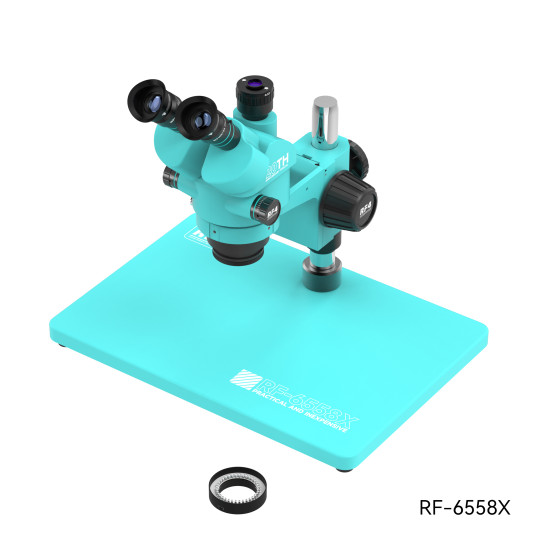

RF4 RF6558 6.5X-58X Trinocular Full HD Stereo Microscope With Zooming 0.5X CTV Camera Lens & LED Adjustable Light

RF4 RF6558 6.5X-58X Trinocular Full HD Stereo Microscope With Zooming 0.5X CTV Camera Lens & LED Adjustable Light

Specification:

• Magnification: Continuous zoom 6.5X to 58X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM adjustable
• Objective: 0.65-5.8X
• Zoom Knob: Metal knob 7 gear zoom

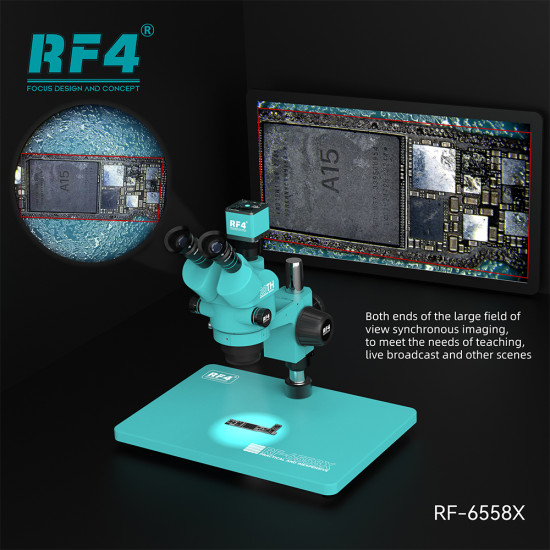

• Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom)

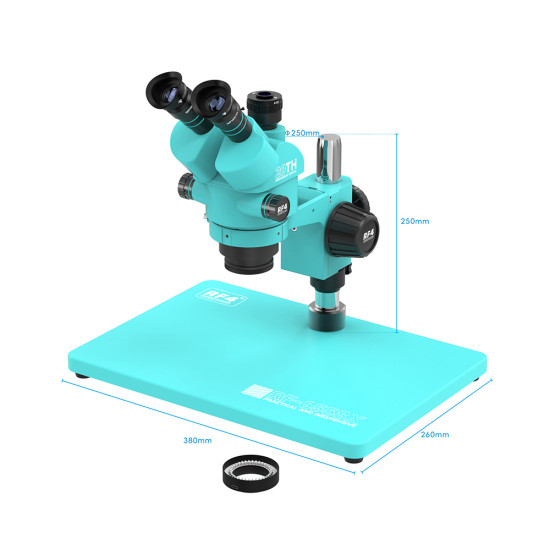

Support Parameters:

• Column aperture: Φ32mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm

Wide-angle Eyepieces 10X/23:

• Magnification: 10X
• Wide field of view 23mm
• Matching size: 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Lens

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
• The adapter ring can use LCD to focus, this kind of focus method is manual focus
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

Package Content*

1x RF4 RF6558 (6.5X-58X)

1x Aluminum Alloy Plate

1x Rubber Guard

1x 10X/23 Eye Lens

1x LED Light

1x Dustproof Len

1x 0.5X Pro CTV Lens
