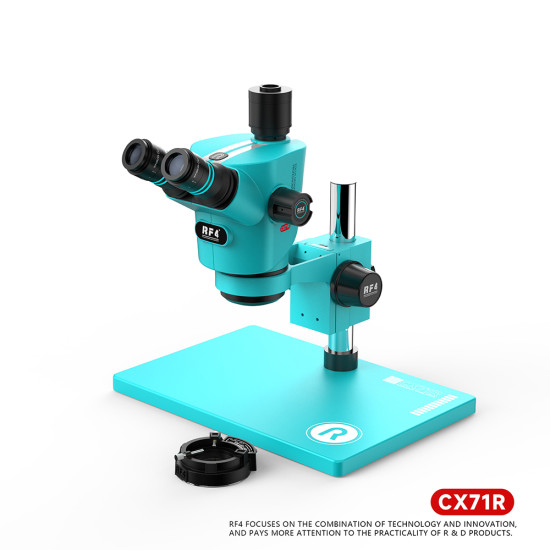

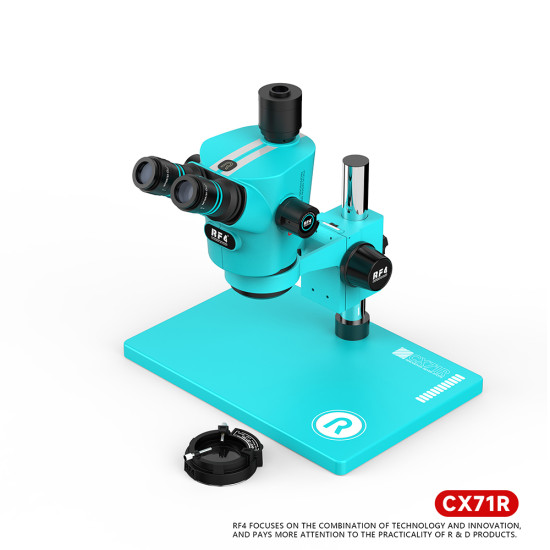

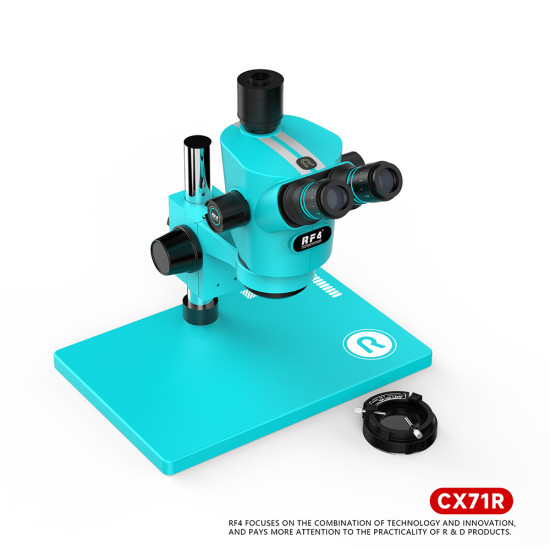

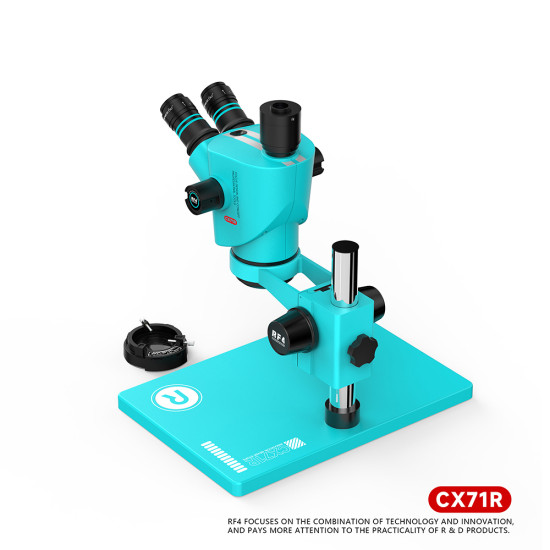

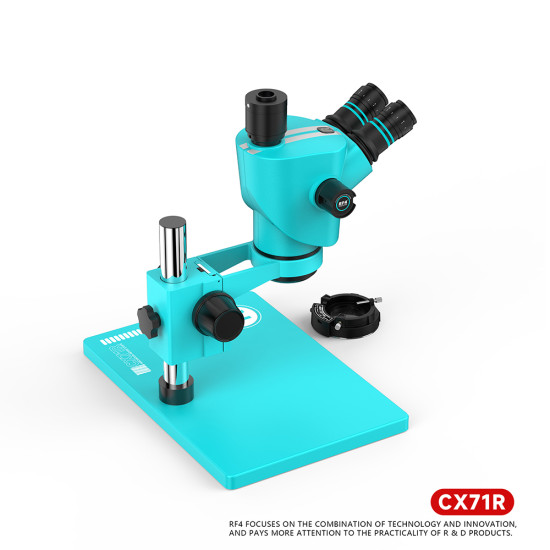

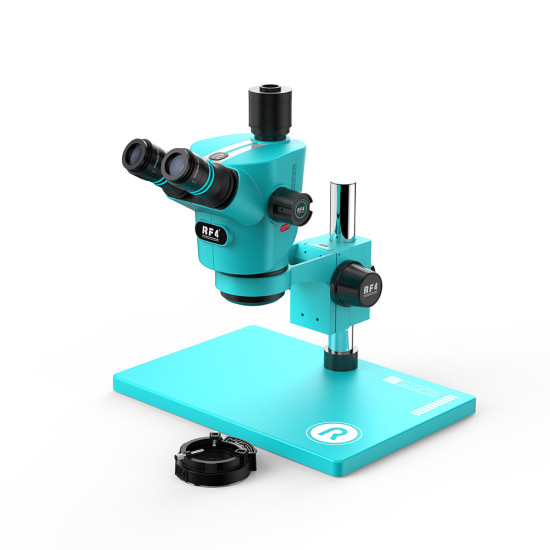

RF4 CX71R (6.5-65X) Ergonomic Design Trinocular Stereo Microscope With CTV Camera Lens and Light - Premium Quality

RF4 CX71R (6.5-65X) Ergonomic Design Trinocular Stereo Microscope With CTV Camera Lens and Light - Premium Quality

Specification:

• Magnification: Continuous zoom 6.5X to 65X

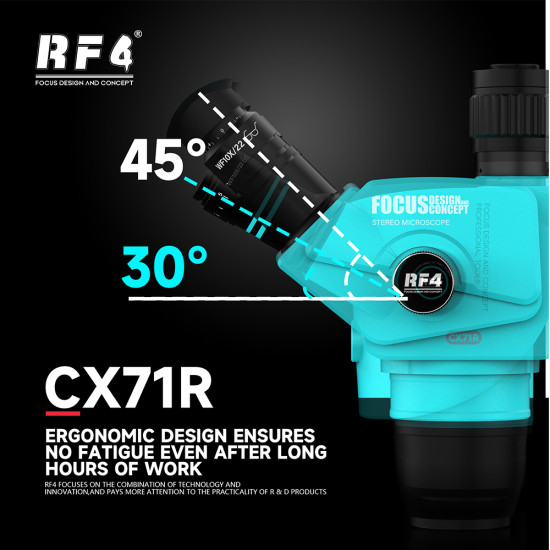

• Head: 30-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/23MM adjustable
• Objective: 0.65~6.5X
• Zoom Knob: Metal knob
• Camera connector: 0.48X CTV (Monitor and eyepiece Synchronous zoom)
• Accessories: 144 light dust-proof lens / Leak-proof eye cup

Support Parameters:

• Column aperture: Φ25mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm
• Base size: 380*260mm

Wide-angle Eyepieces 10X/23:

• Magnification: 10X
• Wide field of view 23mm
• Matching size: 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
• The adapter ring can use LCD to focus, this kind of focus method is manual focus
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz
• Output: DC 12V, Max 700mA
• Light color: White
• Number of lights: 144 LEDs
• Inside diameter: 60mm



Package Content*

1x Microscope RF4 CX71R

1x One Big Microscope Base (380MM * 250MM)

1x 144 LED Light

1x Dustproof Len

1x CTV Lens
