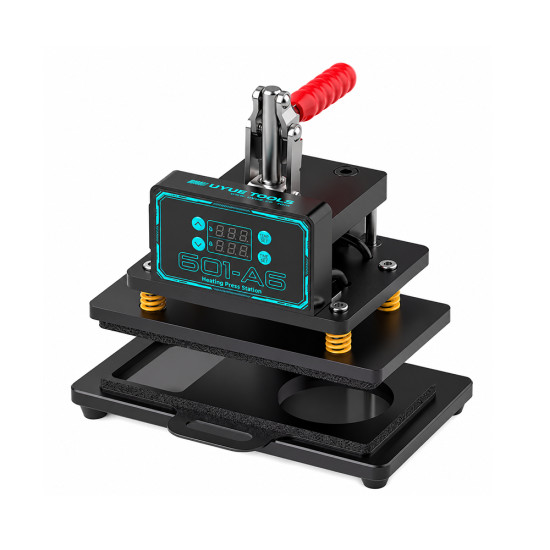

UYUE 601-A6 Dual-Sided Multifunctional Heat Pressing Mold

UYUE 601-A6 Dual-Sided Multifunctional Heat Pressing Mold

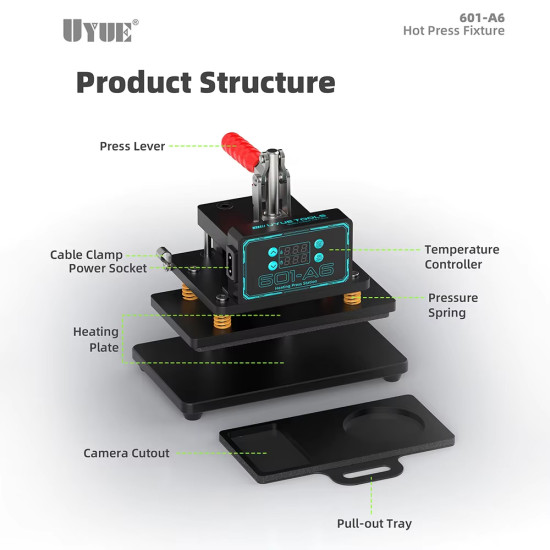

Features:

• Dual-temperature Zoning Design: Adjustable upper heating temperature & constant lower heating temperature, compatible with full lamination processes for phone screens, back covers, and waterproof adhesive
• Timed Power-off Protection: Prevent screen damage caused by overheating and reduce maintenance loss costs

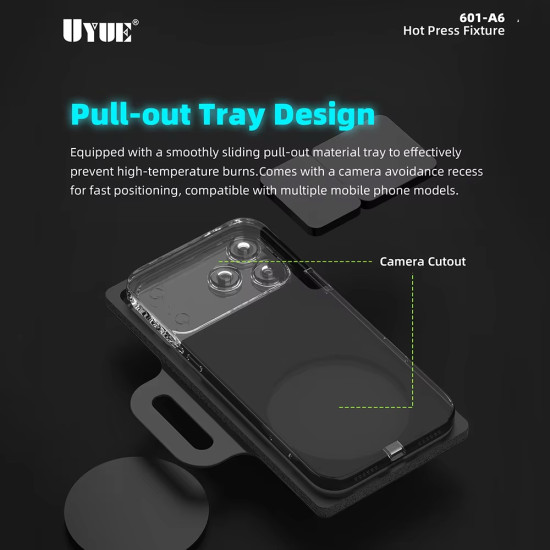

• Tray with Camera Cutout: No need to disassemble camera modules, greatly improving maintenance efficiency

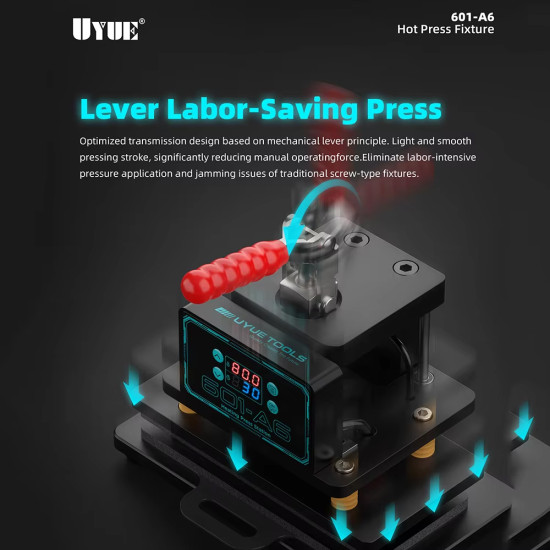

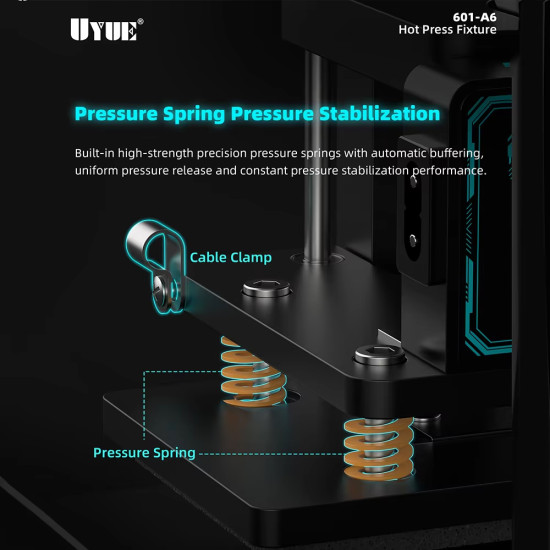

• Uniform Pressure Structure with Buffer Springs: Avoid cracking curved screens and boost product yield
• Digital Precision Temperature Control with minor temperature deviation, ideal for mass repair processing

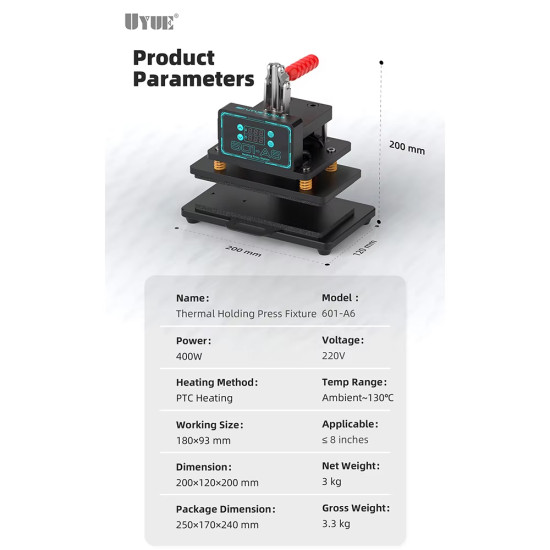

Specifications:

• Name: Thermal Holding Press Fixture
• Model: 601-A6
• Power: 400W
• Voltage: AC 220V
• Heating Method: PTC Heating
• Temp Range:  Ambient~130℃
• Working Size: 180x93 mm
• Applicable: 8 inches
• Dimension: 200*120*200mm
• Net Weight: 3 kg

Package Content*

1x Holding Press Fixture

1x Power Cable
