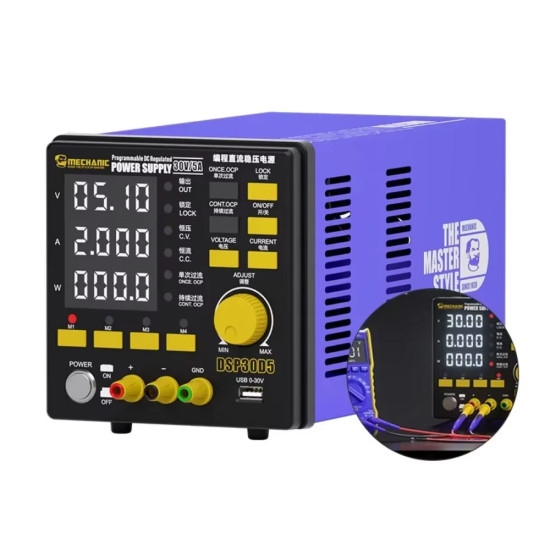

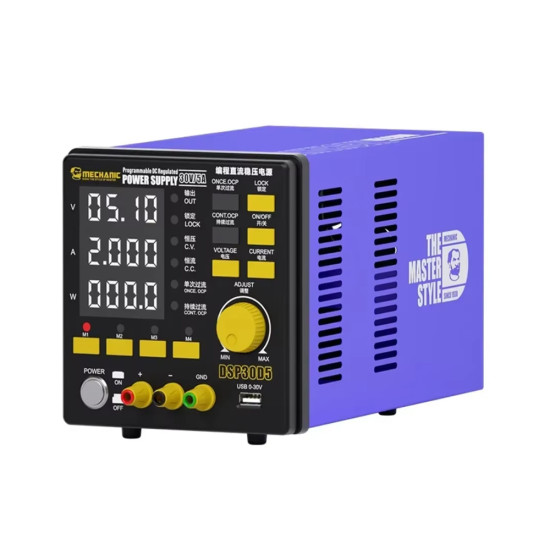

Mechanic DSP30D5 Digital Display Programming DC Regulated Power Supply - 4-Digit ( 30V/5A )
Features:
- This feature provides a highly accurate numerical display, using four-bit display technology, which can clearly display the voltage and current values of the power supply
- This high-precision display provides more accurate data, helps users to better control and monitor the working state of the power supply

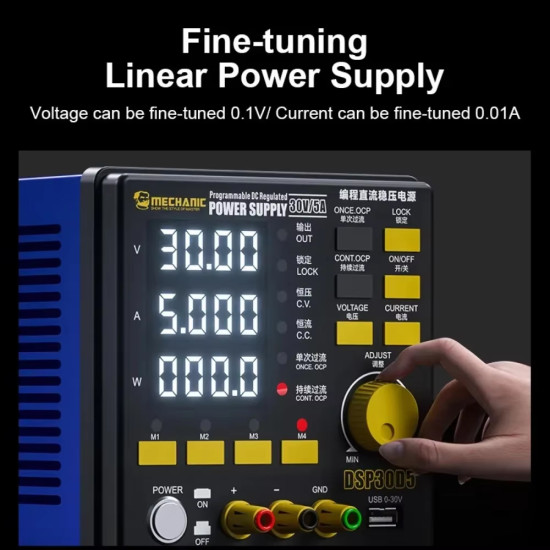

- Fine-tuning linear power supply, the voltage can be fine-tuned to 0.1V, current can be fine-tuned to 0.01A
- Control the power, fine adjustment, the new power equipment the perfect combination of precision and power
- The voltage can be fine-tuned to 0.1V and the current can be fine-tuned to 0.01A
- It not only has excellent fine-tuning function but also strong stability and reliability

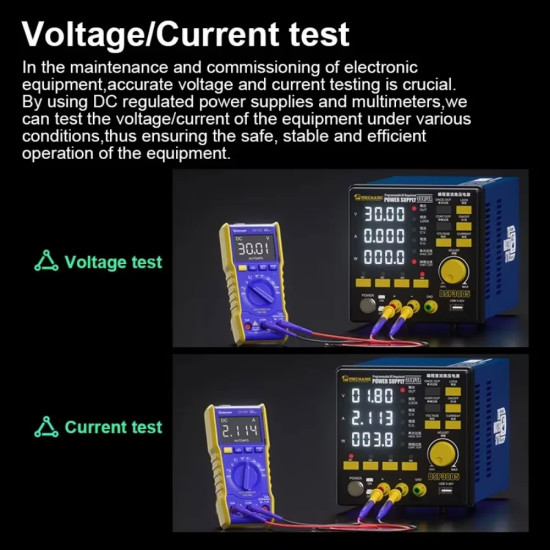

- In the maintenance and commissioning of electronic equipment, accurate voltage and current testing is crucial.

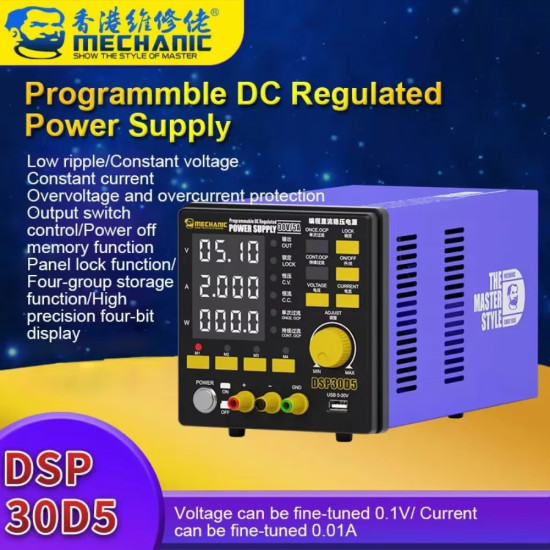

- Low ripple/Constant voltage/Constant Current/Overvoltage and overcurrent protection/Output switch control/Power off memory function

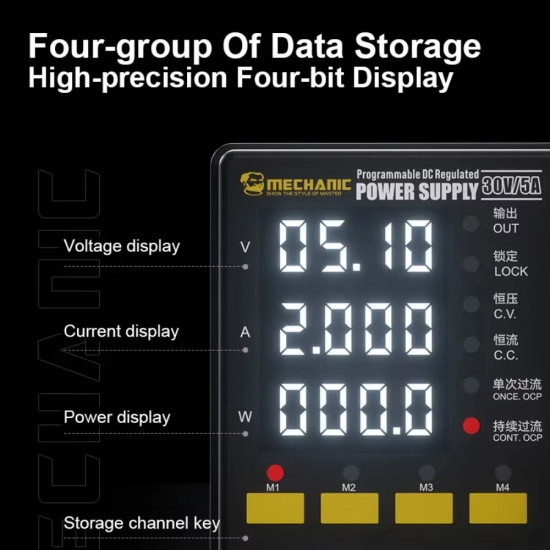

- Panel lock function/Four-group storage function/High precision four-bit display
- Three-side heat dissipation, cooling fan on the back of the machine, cooling holes on both sides of the body

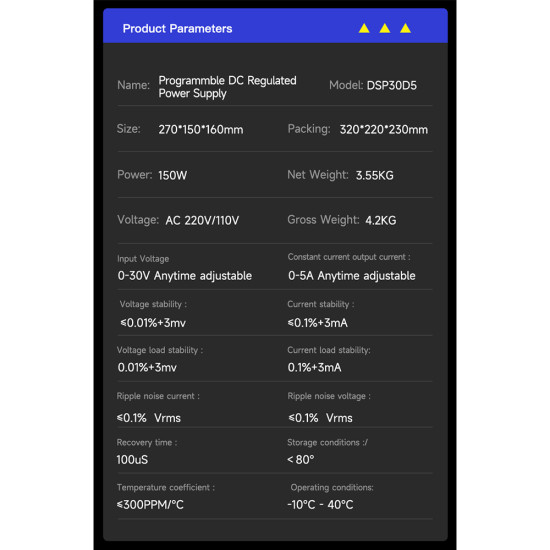

Specifications:
- Name: Programmable DC Regulated Power Supply
- Model: DSP30D5
- Power: 150W
- Voltage: AC 110V/220V
- Input Voltage: 0-30V Anytime adjustable
- Voltage stability: ≤0.01%+3mv
- Voltage load stability: 0.01%+3mv
- Ripple noise current: ≤0.1%Vrms
- Recovery time: 100uS
- Temperature coefficient: ≤300PPM/°C
- Constant current output current: 0-5A Anytime adjustable
- Current stability: ≤0.1%+3mA
- Current load stability:: 0.1%+3mA
- Ripple noise voltage: ≤0.1%Vrms
- Storage conditions: <80°
- Operating conditions:: -10℃-40℃
- Size: 270*150*160mm
- Net Weight: 3.55KG
Package Content*
1x Power Supply
1x Power Cable
1x Alligator Clip
