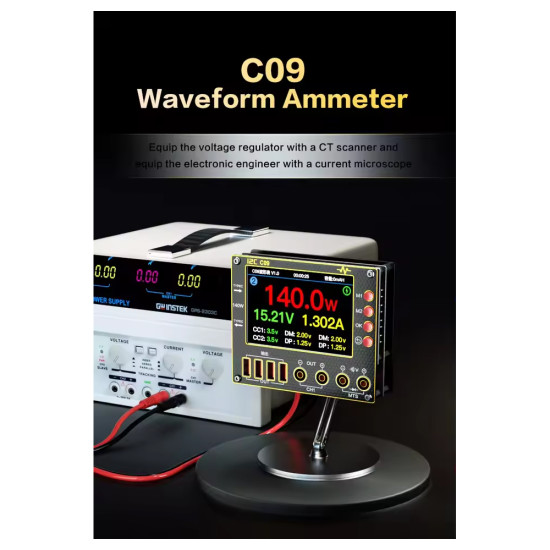

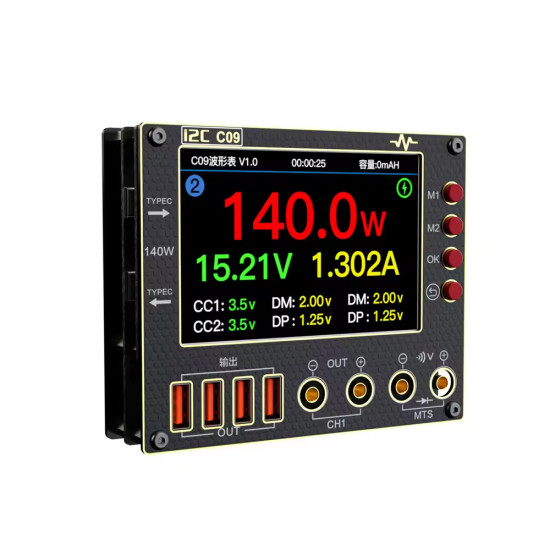

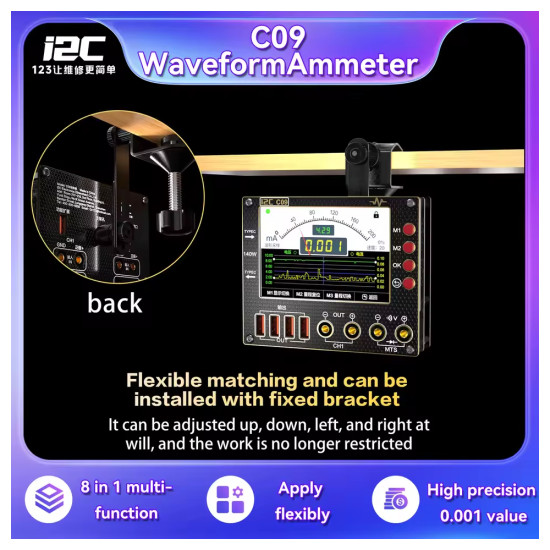

i2C C09 Digital Waveform Ammeter is a versatile diagnostic tool designed for electronics repair, offering voltage and current testing, charge detection, and waveform analysis across multiple display modes.

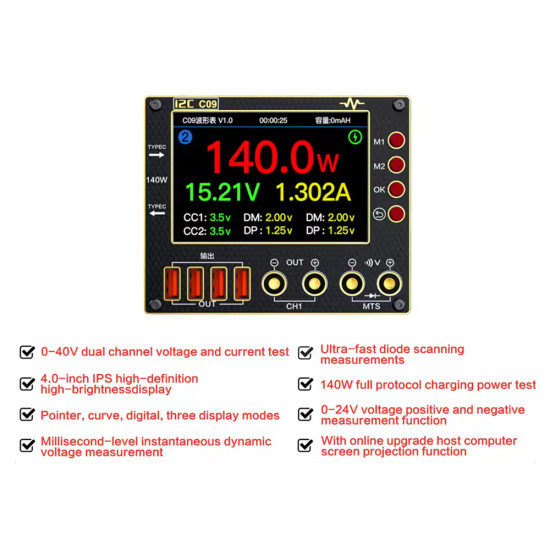

Key Features

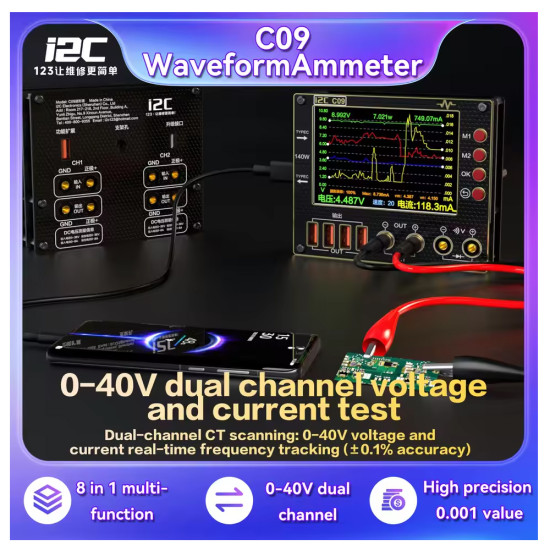

- Dual-channel voltage and current testing across 0–40V range.

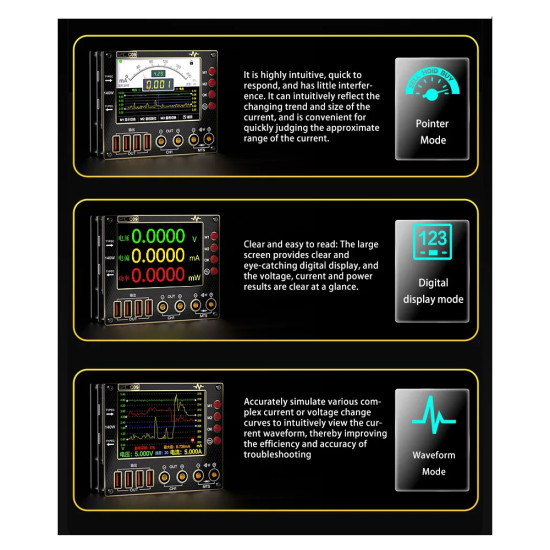

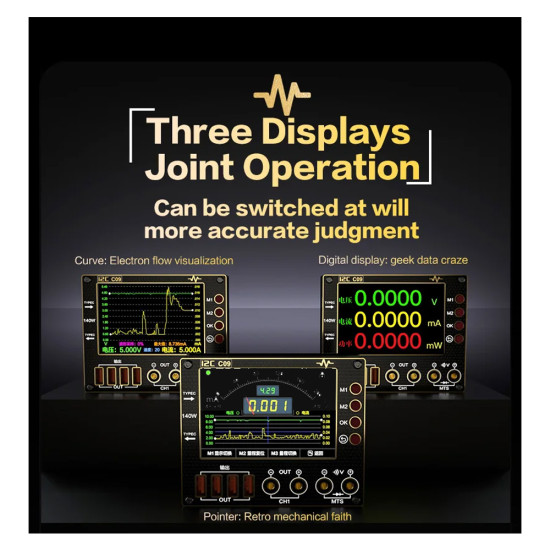

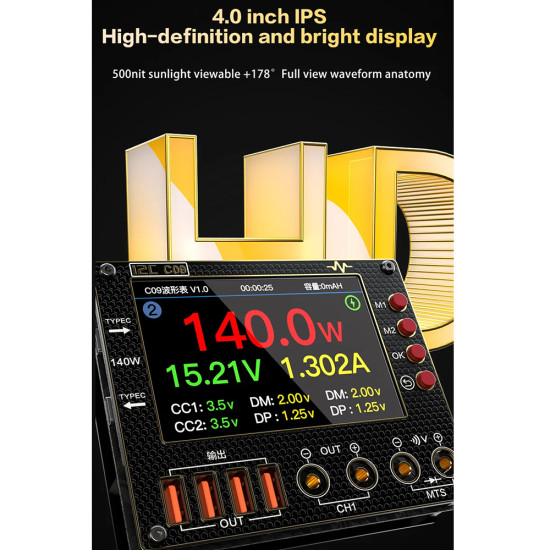

- 4.0-inch IPS high-definition display with pointer, curve, and digital modes.

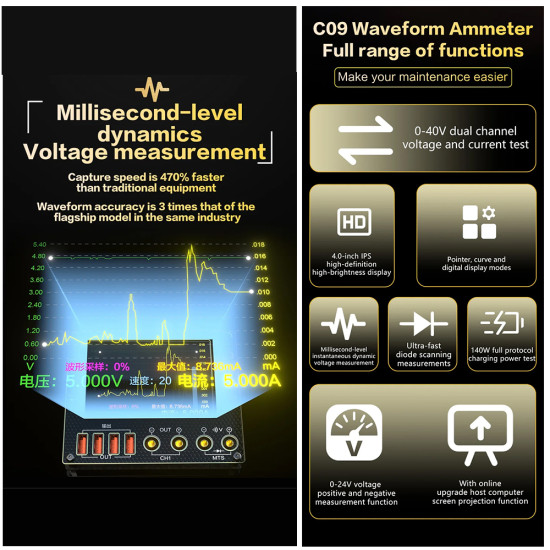

- Millisecond-level instantaneous dynamic voltage measurement for accurate diagnostics.

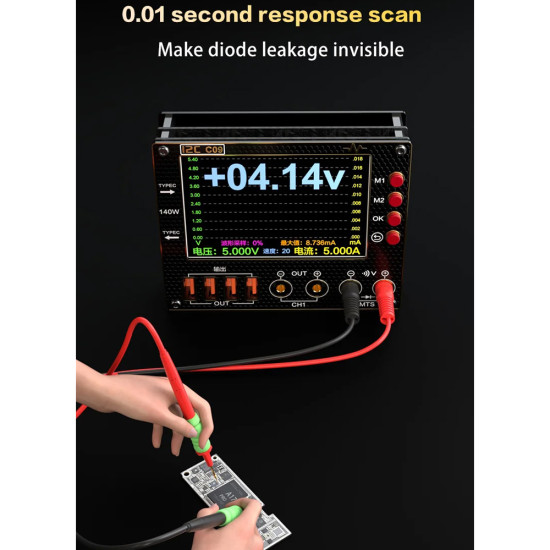

- Ultra-high-speed diode scanning for quick component analysis.
- Supports 140W full-protocol charging power testing, useful for device charging diagnostics.
- Positive/negative voltage measurement function covers 0–24V.
- Online upgrade capability and PC screen projection for workflow integration.

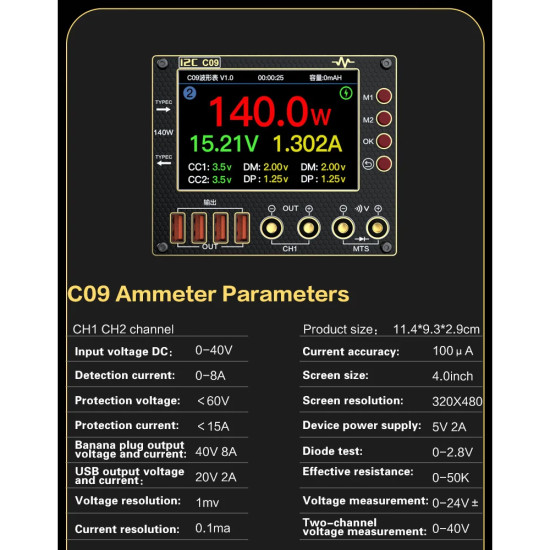

Specification:
- Input voltage DC: 0~40V
- Device power supply: 5V / 2A
- Diode test: 0~2.8V
- Effective resistance: 0~50K
- Voltage measurement: 0~24V
- Two-channel voltage measurement: 0~40V
- Detection current: 0~8A
- Protection voltage: <60V
- Protection current: <15A
- Banana plug output voltage and current: 40V/8A
- USB output voltage and current: 20V/2A
- Voltage resolution: 1mV
- Current resolution: 0.1mA
- Current accuracy: 100μA
- Screen size: 4.0-inch
- Screen resolution: 320*480

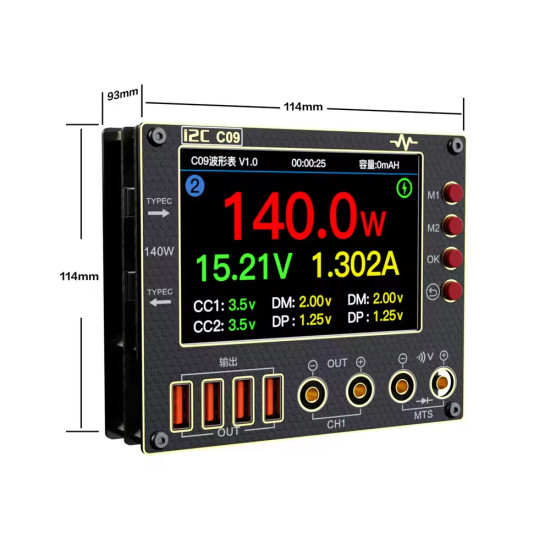

- Product size: 11.4*9.3*2.9cm
Functions
- Measures voltage (0–40V) and current (0–8A) on two separate channels.
- Diode test function (0–2.8V) for rapid checking of semiconductor components.
- Resistance measurement (0–50KΩ) and instantaneous current detection.
- USB and banana plug outputs for flexible connectivity to various devices.
- High resolution measurements: voltage (1mV), current (0.1mA), with 100μA accuracy.
Advantages
- Provides real-time, high-accuracy waveform and numeric diagnostics.
- Multiple display options enhance usability for different analysis scenarios.
- Can test charging protocols up to 140W, which is valuable for modern electronics.
- Online upgrade and PC projection keep the device current and versatile in professional settings.
- Compact size (11.4 × 9.3 × 2.9 cm) and lightweight design (0.35 kg) facilitate portability in repair workshops.
Uses
- Diagnosing faults in motherboards, mobile phones, and various electronic devices by measuring voltage, current, and charge patterns.

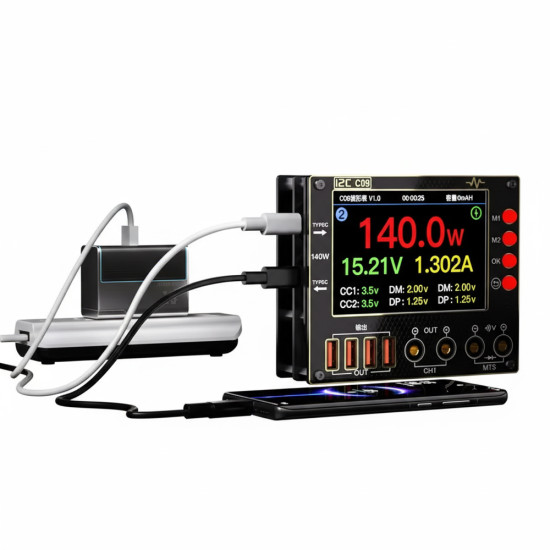

- Testing charging circuits and assessing charging protocol compatibility for mobile device repair.
- Component-level troubleshooting using diode and resistance measurement features.
- Real-time waveform monitoring and numeric analysis in electronics R&D and maintenance operations.
Package Content*
1x i2C C09 Waveform Ammeter
